Email Protection

When a user shares an email or file through the SaaS application, Avanan gets notified through API. The  security engine then scans the data for threats and malicious content and determines if it is necessary to quarantine, clean, remove, and more.

To scan the data for threats, Avanan uses a full-blown security stack that includes zero-day threats protection and malware prevention, data leak prevention, and the ability to reveal shadow IT scenarios. Avanan is designed to protect from real SaaS threats.

Overview

Avanan offers the industry’s most complete cloud security solution with defense-in-depth capabilities to make your SaaS and IaaS safe and compliant. It protects your users and files in any cloud environment, from Office 365 to Gmail, Amazon Web Services to Azure.

Avanan offers three modes of protection for email outlined below:

1. Monitor only
2. Detect and Prevent
3. Protect (Inline)

Monitor only mode provides visibility into the cloud-hosted email leveraging publicly available API and a journal entry from the SaaS email provider. Scan results are provided from 60+ best of breed security tools. In this mode manual and automated query based quarantines are available after delivery to the user mailbox.

1. Incoming email passes through the email provider’s spam filter. Emails are sorted accordingly,
1. Rejected
2. Accepted, Moved to Junk
3. Accepted, Moved to Inbox
2. Manual and automated query-based quarantines are available after delivery to the user mailbox.

Detect and Prevent mode provides an increased level of protection that scans email via journaling leveraging the same SaaS email provider API. This mode adds an automated policy action to quarantine malware,  phishing attacks, etc. based on the results of the best of breed security stack. In this mode user notifications and release workflows are available.

1. Incoming email arrives in respective mailbox folder.
2. Avanan detects new email and scans (10 sec - 5 min).
3. If malicious, Avanan takes automatic action, otherwise, leave the email alone.
4. Optional user notifications and release workflows are available.

Protect (Inline) mode provides the highest level of protection and scans email prior to delivery to the end user’s inbox. Leveraging the same SaaS email provider API and implementing mail flow rules Avanan can scan email with a best-of-breed security stack to protect end-users from malware, data leaks, phishing attacks, and more. Scanning and quarantining take place before the email is delivered to the user’s inbox. This mode ensures that threats are detected and remediated before the user has access to the email.

1. Incoming email heads to the mail flow.
2. Avanan redirects the mail to the Avanan platform for scanning (10 sec - 5 min).
3. If malicious, Avanan takes action, otherwise, returns the email to the mail flow.
4. User notifications and release workflows are defined in the policy.

Configuring Email Policy

Threat Detection Policy

Threat Detection policy rules are designed to prevent malicious emails (phishing, spam, malware etc.) from getting to your end-users mailbox or alternatively prevent them from being sent by your end-users to external parties.

Detect and Prevent mode and Protect (Inline) mode offers three separate workflows to manage malware and phishing attacks. In Detect and Prevent mode the workflow scans the emails after delivery of email to the user and in Protect (Inline) mode, the workflow scans the emails prior to delivery to the user.

Note - Changing the policy protection mode from Monitor only or Detect and Prevent mode to Protect (Inline) mode takes time to start protecting in Protect (Inline) mode. It could take up to two hours, depending on the number of protected users in the Avanan Portal account.

Sync Times with Microsoft

• If you change the policy protection mode from Monitor Only or Detect and Remediate mode to Prevent (Inline) mode, it takes time to start protecting in Prevent (Inline) mode. It could take up to an hour, depending on the number of protected users in the Avanan portal.
• When adding a user to the scope of a Prevent (inline) policy that is not set to All Users and Groups, it may take up to 1 hour for emails from this user to be inspected inline.
• When a new user is added to Microsoft 365, administrators can include them in the policy scope within 10 minutes or it might take up to 24 hours.

Threat Detection Policy for Incoming Emails

Configuring a Threat Detection Policy Rule

1. Click Policy on the left panel of the Avanan Portal.
2. Click Add a New Policy Rule.
3. From the Choose SaaS drop-down list, select the SaaS platform you want to set policy for Office 365 Emails or Gmail.
4. From the Choose Security drop-down list, select Threat Detection and click Next.
5. Select the desired policy mode (Monitor only, Detect and Prevent or Protect (Inline)).
   If required, you can change the Rule Name.
   Note - Avanan protects Microsoft 365 Groups (a service that works with the Microsoft 365) only when the policy mode is set to Protect(Inline).
6. Select the users and groups to which the policy is applicable and click Add to Selected.
   • To apply the policy to all users and groups in your organization, enable All Users and Groups.
   • To exclude some of the users or groups from the policy, select the users/groups and click Add to Excluded.

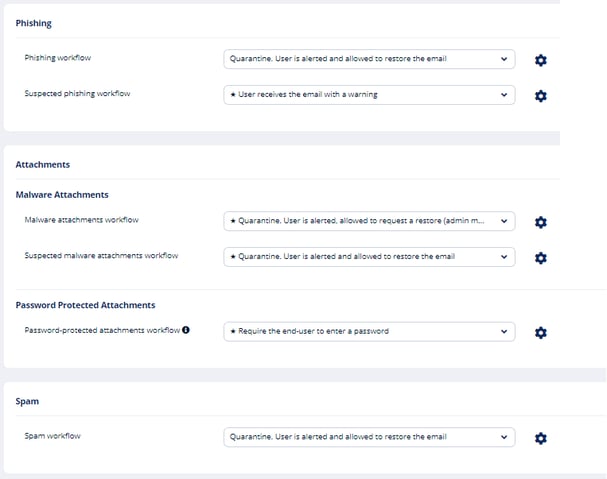

7. Select the workflows required for the policy.
   Note - If you select Monitor only and Detect and Prevent mode, you may not see some of these additional configuration options that allows you to customize the end user email notifications.

   For more information on workflows, see Phishing Protection and Malware Workflow.
8. Configure Alerts to send to the administrators, users, and specific email addresses.
   • To send email alerts about phishing and malware, select Send email alert to admin(s) about phishing and Send email alert to admin(s) about malware.
   • To send email alerts to specific emails, select Send Email alert to ... and enter the email address.
   • To stop sending alerts to administrators for block-listed items, clear the Send email notifications to Admin on blocklisted items checkbox.
   • To stop sending alerts to users for block-listed items, clear the Send email notifications to User on blocklisted items checkbox.

     Note - To customize the email alert templates, click on the gear icon to the right of the alert.
9. After the policy is configured, click Save and Apply.
   Note - Policies are based on the order of precedence. Make sure your policies are applied in the proper order. You can adjust the policy order from the order column of Policy.

Phishing Protection

Phishing protection is comprised of the phishing workflows in the policy itself and from the general Anti-Phishing  Engine settings.

For information about the Anti-Phishing engine settings, see Security Engines - SmartPhish - Spam Protection and Security Engines - SmartPhish.

Phishing Workflow

When phishing is detected in emails, the configurable workflows for Anti-Phishing are as follows:

Workflow	Description

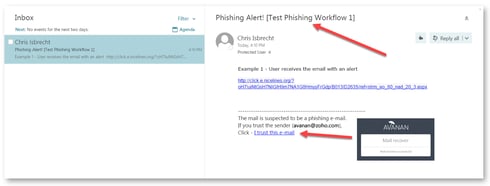

User receives the email with a warning	Email to the user is scanned and when found to be suspicious, the subject is replaced with a Phishing  warning notice and the original subject is provided in brackets. The body of the message includes a customizable message to the user along with a link to remove the warning if a false positive is suspected by the user.
Quarantine. User is alerted and allowed to request a restore (admin must approve)	Email to the user is scanned and when found malicious, the subject is replaced with Quarantined notice and the original subject is provided in brackets. The body of the message is replaced with a  customizable message to the user along with a link to release the email if a false positive is suspected.
Quarantine. User is alerted and allowed to restore the email	Email to the user is scanned and when found malicious, the subject is replaced with a quarantined notice and the original subject is provided in brackets. The body of the message is replaced with a customizable message to the user along with a link to release the file if a false positive is suspected. The attachment is also stripped and noted in the replaced body. In this workflow, the user has the option to release the quarantined attachment. Using the link in the email, the user can release the attachment. The original email and attachment will be immediately delivered back to the inbox.
Quarantine. User is not alerted (admin can restore)	In this mode, the email is automatically quarantined with no user notification.
Email is allowed. Deliver to Junk folder	The detected email is delivered to the recipient's Junk folder
Email is allowed. Header is added to the email	The detected email is delivered to the recipient with an additional header that can be configured in the policy.
Do nothing	The detected email is delivered to the recipients

For more information on who receives the restored emails, see Who receives the Emails Restored from Quarantine.

Suspected Phishing Workflow

When suspected phishing is detected in emails, the configurable workflow for Anti-Phishing are as follows:

Malware Workflow

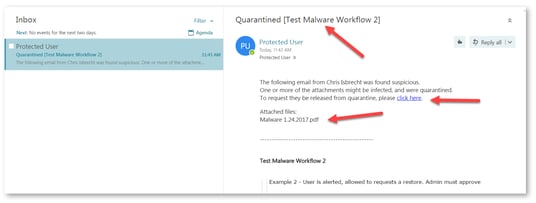

When malware is detected in emails, the configurable workflow for Anti-Malware are as follows:

Notes:

• To create Allow-List and Block-List for Anti-Malware, see Anti-Malware Exceptions.
• To view who receives the restored emails, see Who receives the Emails Restored from Quarantine.

Suspected Malware Workflow

Password Protected Attachments Workflow

When password-protected attachments are detected, Avanan attempts to extract the password using various techniques such as searching for the password in the email body. If the password is found, Avanan uses the password to decrypt the file and inspect it for malware.

If the password is not found, the administrator can select any one of these workflows:

Note - These workflows apply only for the incoming and internal emails.

For more information on who receives the restored emails, see Who receives the Emails Restored from Quarantine.

Supported File Types

Avanan can detect these file types as password-protected:

Requesting Passwords from End Users - End-User Experience

End-User Experience for Require end-user to enter a password workflow

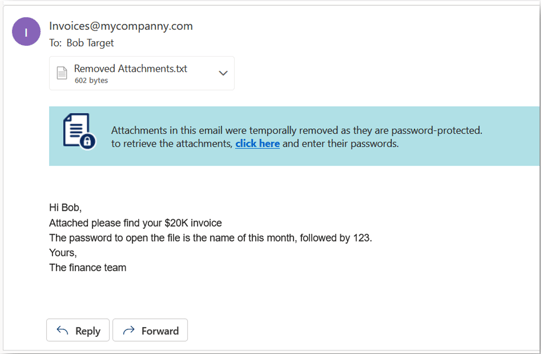

For password protected attachments, if Require end-user to enter a password workflow is defined in the policy, the attachment is removed temporarily and a warning banner is added to the email with a link to enter the password.

To restore the password protected attachment with Require end-user to enter a password workflow:

1. Click the link in the warning banner of the email.

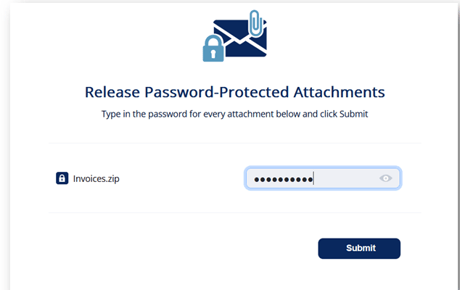

2. Enter the password for the attachment and click Submit.

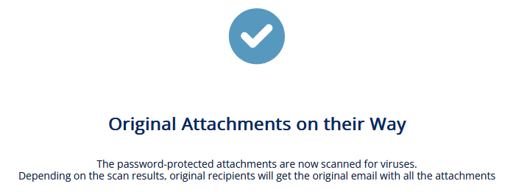

   After you submit, the Anti-Malware engine scans the attachment for malicious content.


   If the Anti-Malware engine finds the attachment as clean, the original email with password-protected attachment gets delivered to the original recipients of the email.

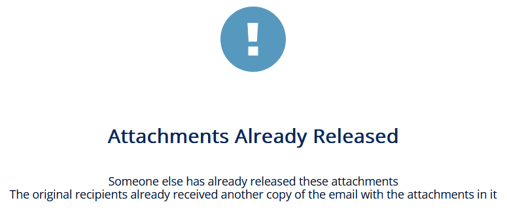

   If the email was already released, this message appears:



End-User Experience for Quarantine. User is alerted and allowed to restore the email workflow

For password protected attachments, if Quarantine. User is alerted and allowed to restore the email workflow is defined for the policy, the email body and its attachments are removed. The user is notified about the email and its attachments with a link to request to release the email.

To restore the email and its attachments:

1. Click the link provided in the email.
2. If prompted, enter the reason for restoring the attachment, and click Submit.

   After you submit, the admin receives the request.

   After the admin approves, the user receives the original email.


Password Protected Attachments - Administrator Experience

For password protected attachments, if Quarantine. User is alerted and allowed to restore the email workflow is defined for the policy, and if the end-user requests to release the email, the administrator is notified about the request.

To review the request:

1. Open the security event of the email for which the user requested to release.

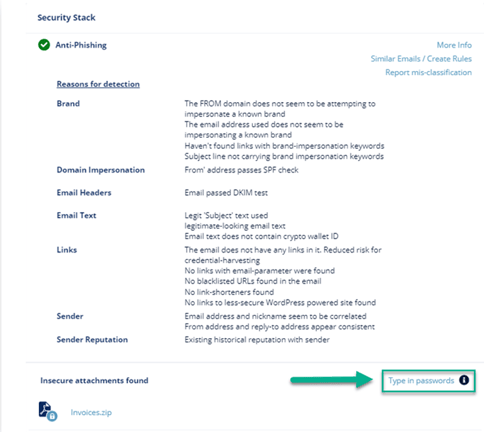

   Under Security Stack, the password-protected attachments which are not scanned by Anti-Malware will be marked as Insecure attachments found.
2. To inspect the password-protected attachments before restoring the email:
   1. Click Type in passwords to enter the password for the attachment.



   2. Enter the password for the attachment and click Submit.


      The Anti-Malware engine scans the attachment and gives a verdict.
   3. To restore the email and its attachments, click Restore Email.
3. To release the original email without inspecting the password-protected attachments, click Restore Email.

Restored Emails - End-User Experience

After the administrator approves an end-user request to restore an email from quarantine, Avanan performs these actions:

• Removes the quarantine/clean email notifications received for the quarantined email from the end user mailbox.
• Adds the original email to the end-user mailbox, where the email received time is the restore time of the email from quarantine, but not the original email sent time.

This example shows the initial email received by the end-user.

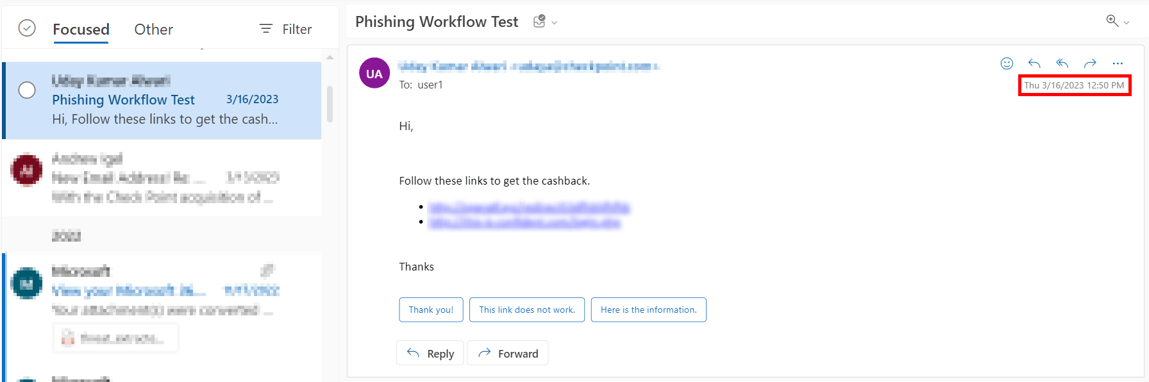

This example shows the same email received by the end-user after the administrator approved the restore request.

Note - The initial email received by the end-user is removed and the restored email gets delivered as a new email to the end-user mailbox. The email received time is the restore time of the email by the administrator, but not the original email sent time.

Spam Workflow

The administrators can select any of these workflows when spam is detected in emails.

Note - Spam protection workflow is configurable only for Office 365 email and Gmail

Note - Depending on the configured workflow, the email is restored only to the requesting user or to all original recipients.

• If the user is allowed to restore the email on their own, the email gets restored only to the requested user.
• If the administrator restores the email, the email gets restored to all the original recipients.

Graymail Workflow

Graymail consists of legitimate but often unwanted emails, such as newsletters and promotional emails, which many users find unnecessary, making it harder to find important messages.

The Graymail workflow moves these unwanted emails to a dedicated folder in the user's mailbox, ensuring a well-maintained inbox and enhancing productivity.

Note - This workflow is supported only for Office 365 Mail.

To configure the graymail workflow and customize the dedicated folder name:

1. Access the Avanan Administrator Portal and click Policy.
2. Open an existing Threat Detection policy for Office 365 Mail or create a new one.
   The Edit Policy Rule page appears.
3. Go to the Spam section.

4. From the Graymail workflow list, select the workflow:

   1. Do nothing
   2. Email is allowed. Deliver to Promotions folder.
      1. In the Folder Name field, enter the folder name. The default folder name is Promotions.
         The system creates a dedicated folder in the mailbox.
   3. Same as Spam workflow.


      Notes:

      For Email is allowed. Deliver to Promotions folder workflow:

      • The system creates a dedicated folder in the user's mailbox. It may take up to 24 hours to complete this for every 10,000 users.

      • The folder name can only be customized once. If you want to change it later, contact Avanan Support

      • If a user deletes the dedicated folder, the system delivers graymail directly to the inbox, but only when the workflow is Email is allowed. Deliver to Promotions folder.

      • To create the dedicated folder for users added recently to the existing policy or to recreate it for users that have deleted the folder, you must save the policy again.

   4. Click Save.

End-User Experience for Graymails

The system creates a Deliver promotional emails to a dedicated folder rule in the user's mailbox to deliver promotional emails to the dedicated folder. Graymails (emails with the X-CLOUD-SEC-CP-GRAYMAIL header) are then routed to this dedicated folder.

Notification Settings

For information, see Notifications and Banners.

Warning Banners

For more details about warning banners and their configuration, see Warning Banners.

For more information about the supported placeholders, see Notification and Banner Templates - Placeholders
